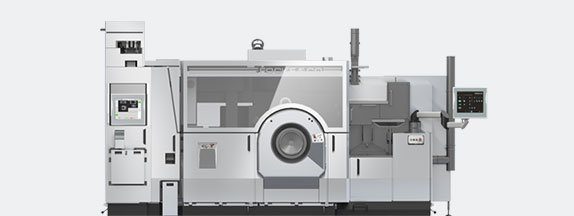

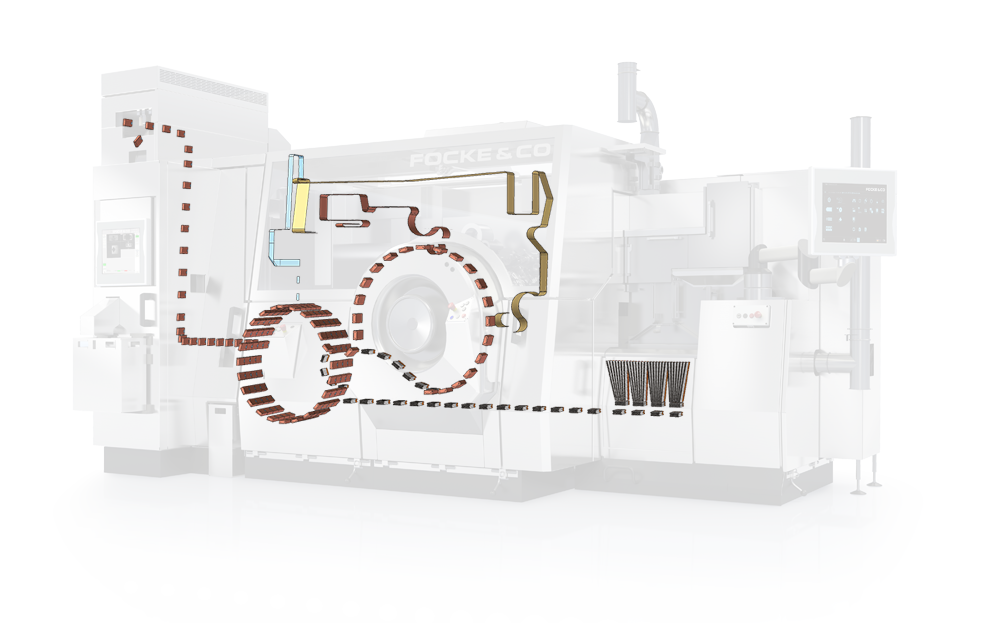

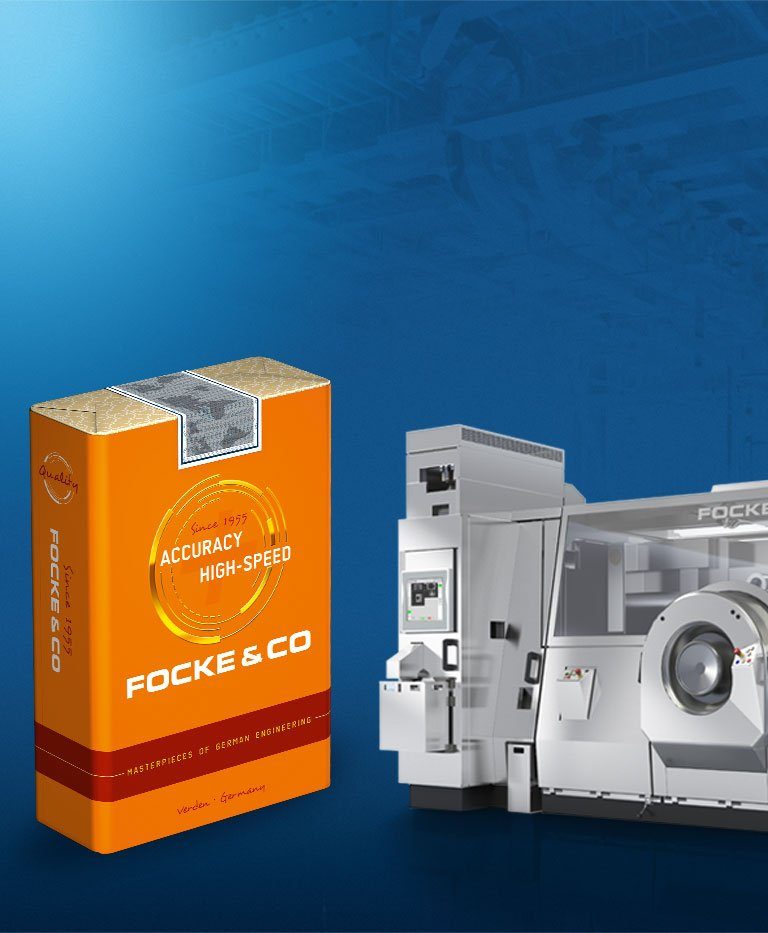

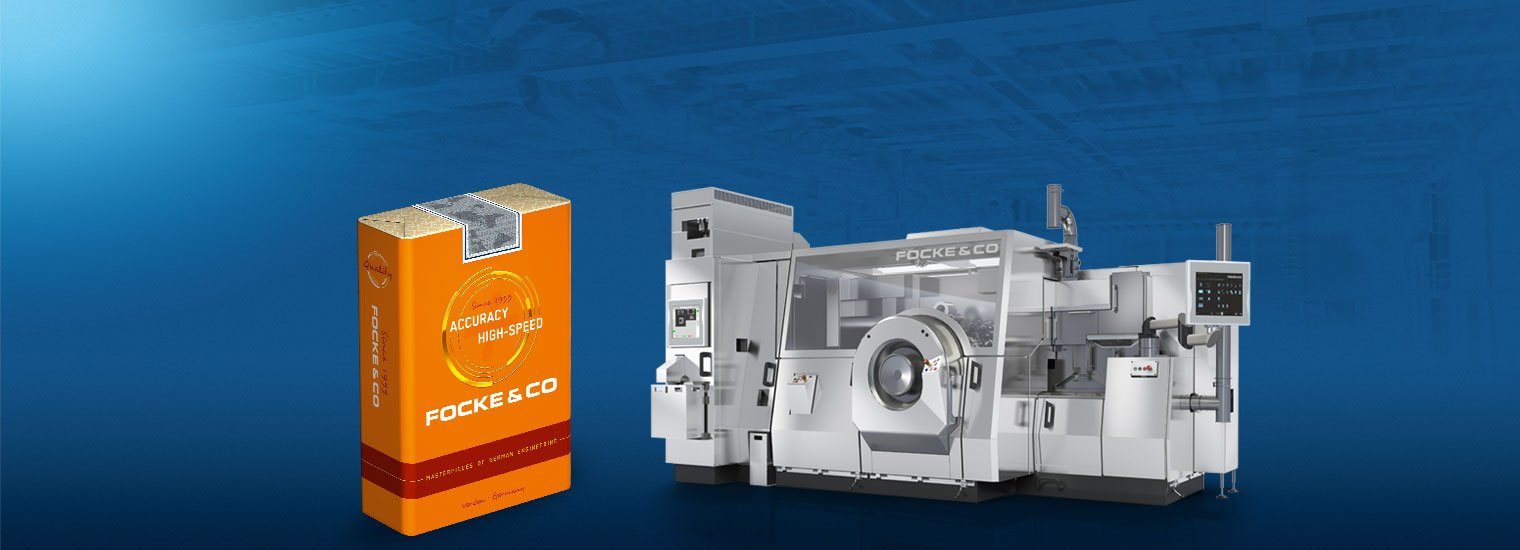

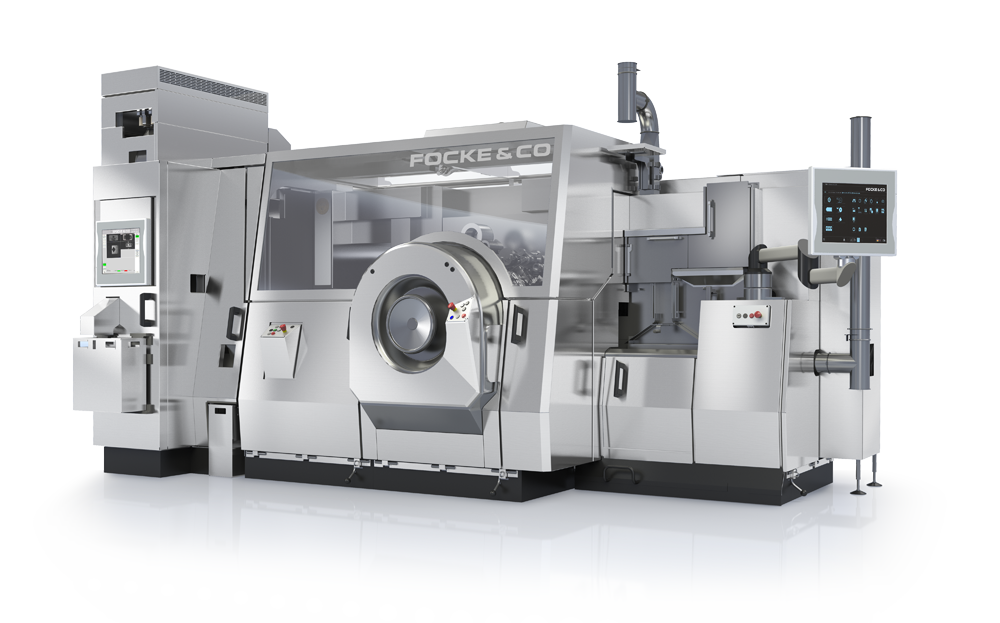

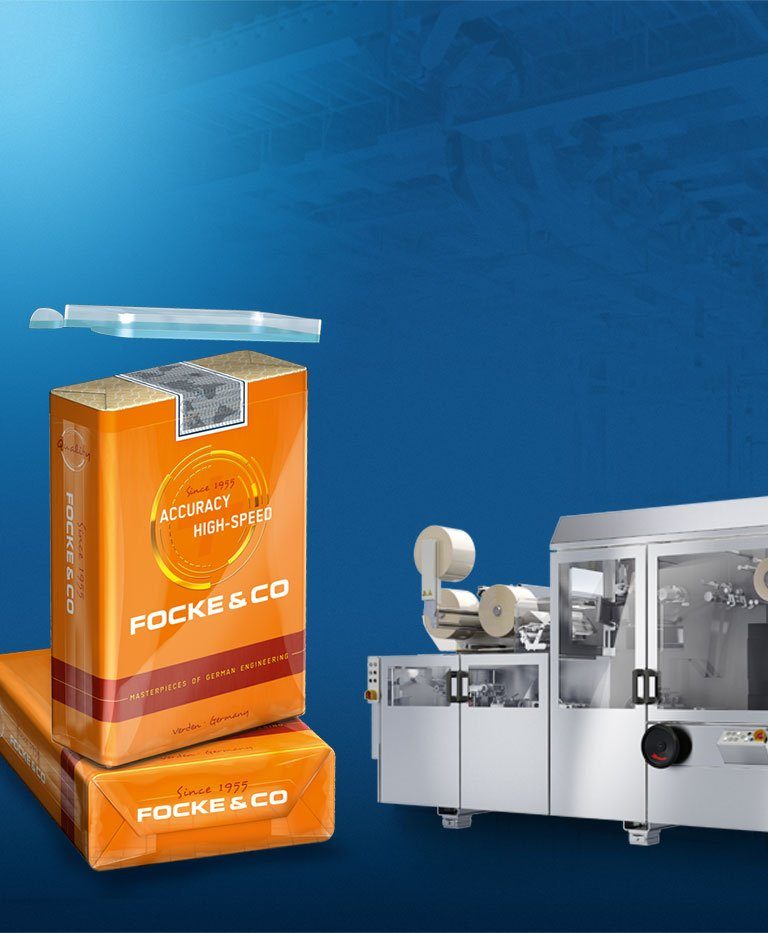

700 PPM | SOFT CUP PACKER FX-SOFT

Well-matched and highly flexible

Facts

Link up to filter cigarette maker for max. cpm

Packs per minute

High

efficiency

Layout Flexibility

There is a wide range of different layouts available. No matter whether a material supply or end-of-line equipment is required. Almost anything can be realised to perfectly integrate the FX-Soft complex into your factory.

Outstanding features

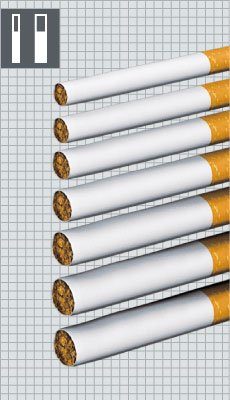

CIGARETTE DIAMETER
DIAMETER

7.8 - 7.9 mm

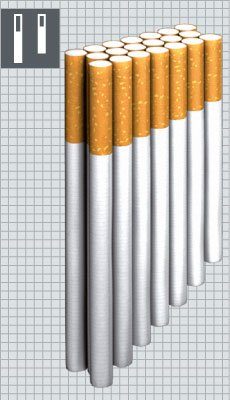

CIGARETTE LENGTHS
LENGTHS

69 – 100 mm

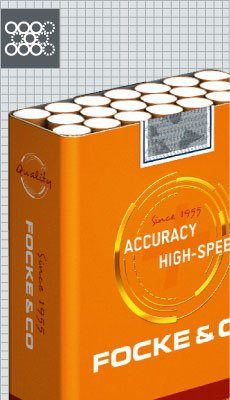

CIGARETTES / PACK
181920

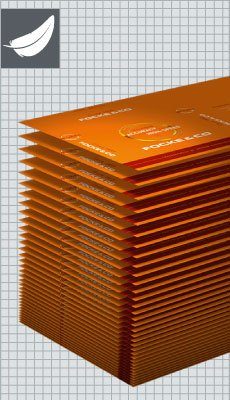

SINGLE SHEET*
GRAMMAGE

82 – 130 g/sqm

THICKNESS

72 – 110 µm

Stiffness in accordance
to DIN 53121

* 600 ppm

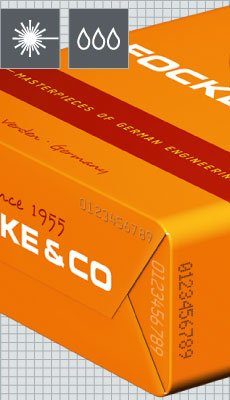

CODING
  • Ink jet
  • Laser
  • Bottom print
  • Side print

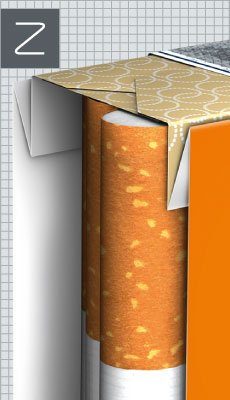

Z-FOLD

The double-z-fold pack
eliminates the need for
the innerliner without
sacrificing product
protection.
Material saving up to
40 % can be achieved.

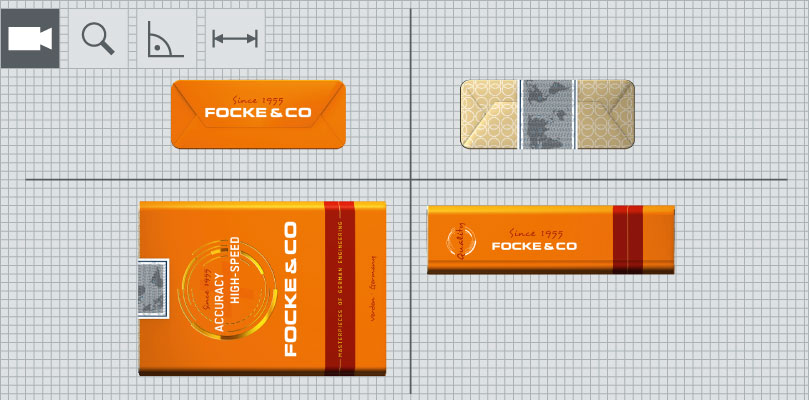

FINAL PACK INSPECTION

The FPI system inspects, measures, verifies positions or detects flaws to determine and
ensure product correctness and quality.

AUTOMATED MATERIAL HANDLING SYSTEM

The Automated Material Handling System was especially developed for the FOCKE & CO Soft Series. It not only provides fully automatic feeding of the paper blank and inner liner, it can also be used to supply the film for the wrapper or the film or paper for the cartoner / overwrapper. Despite its high throughput rate, the work load of the operators is reduced to a minimum.

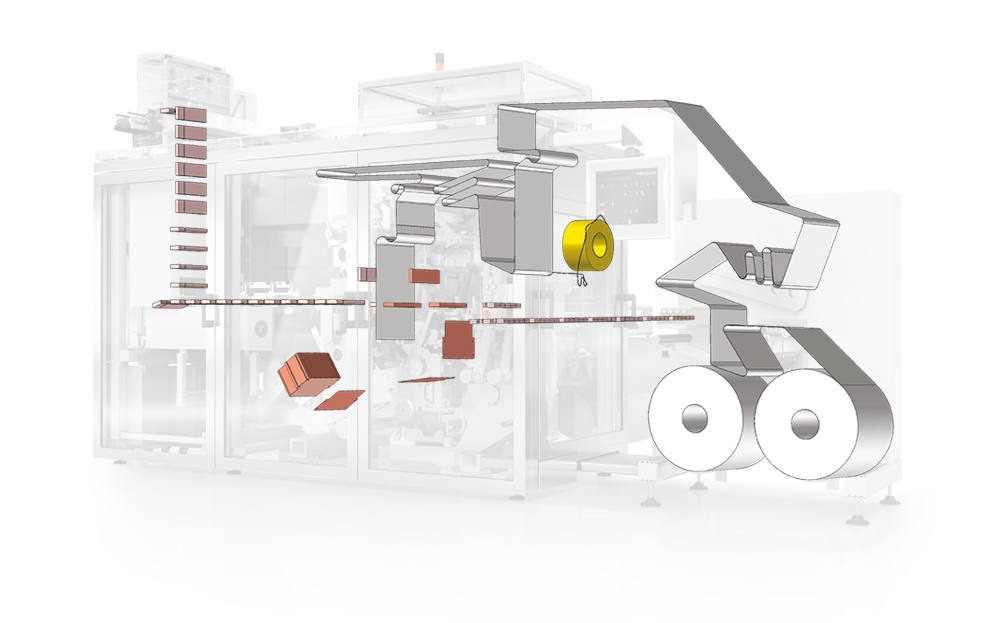

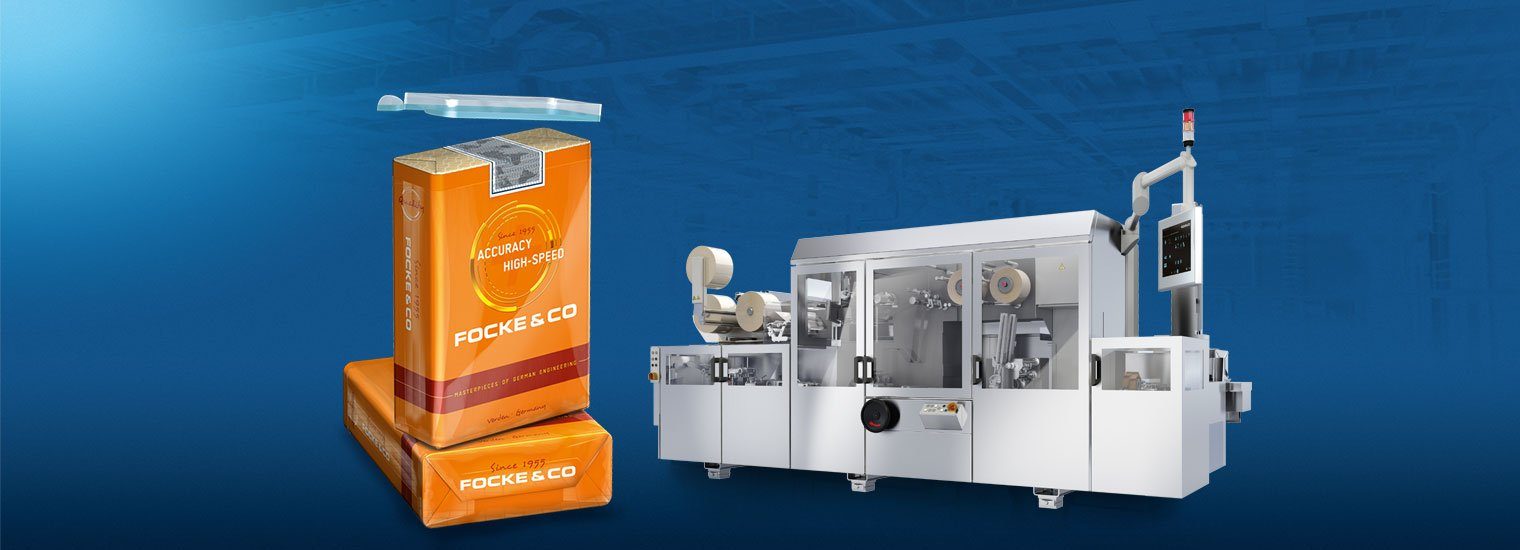

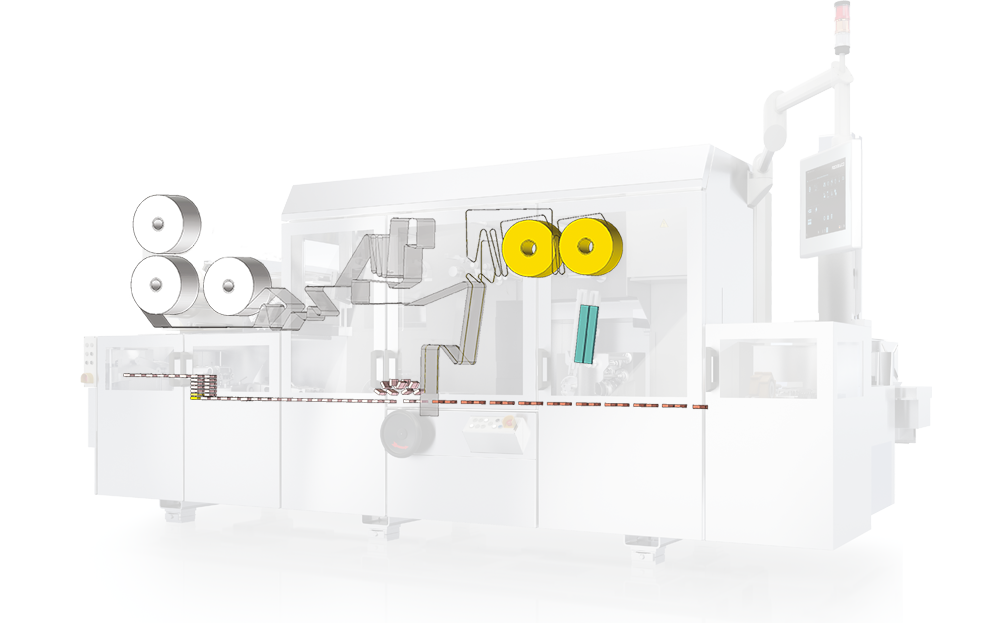

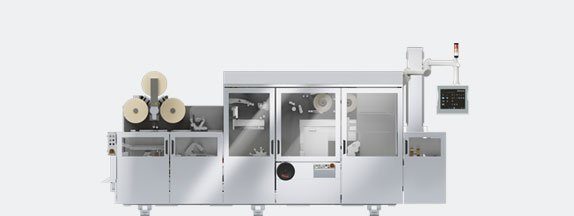

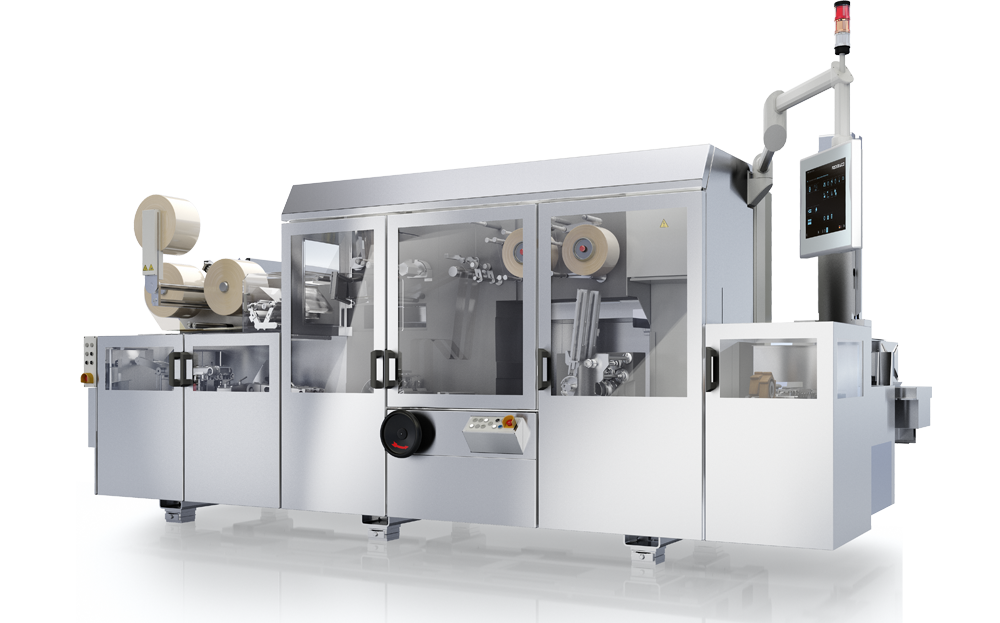

700 PPM | PACK WRAPPER FX-SOFT

Well-matched and highly flexible

Outstanding features

PULL TAB
PULL TAB POSITION
  • Horizontal, front side left
  • Horizontal, back side right

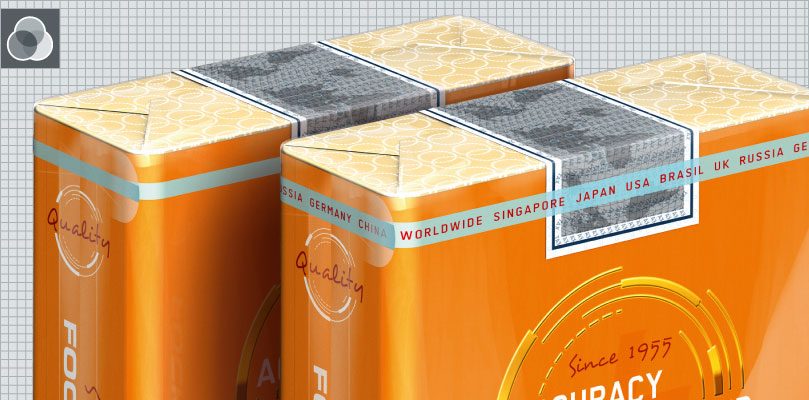

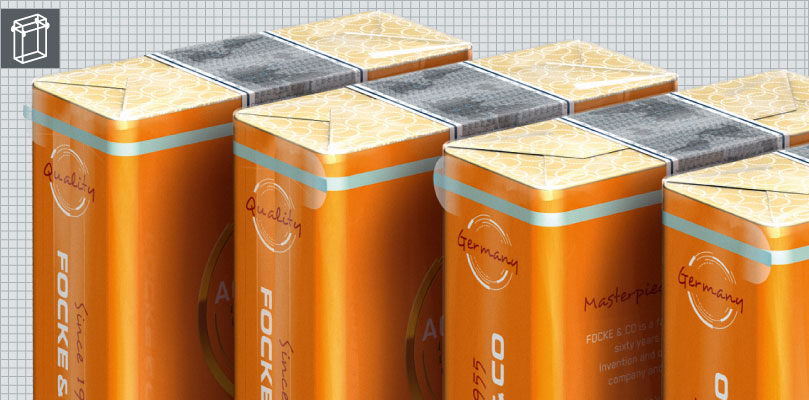

TEAR TAPE
WIDTH

1.5 – 4.0 mm

TYPES
  • Self-adhesive

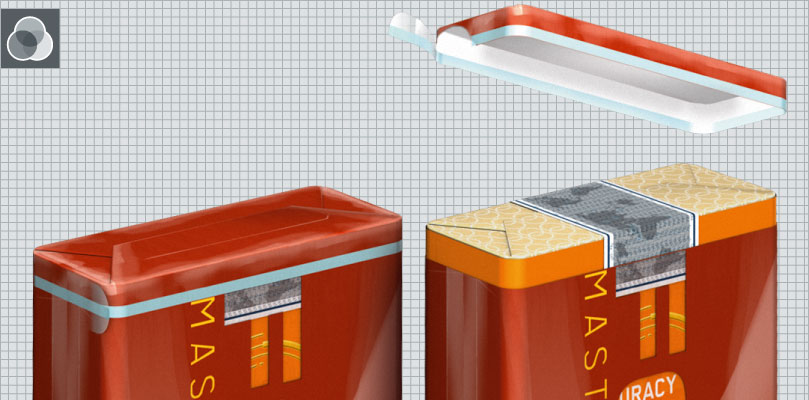

PRINTED FILM
THICKNESS

16 – 22 µm printed film

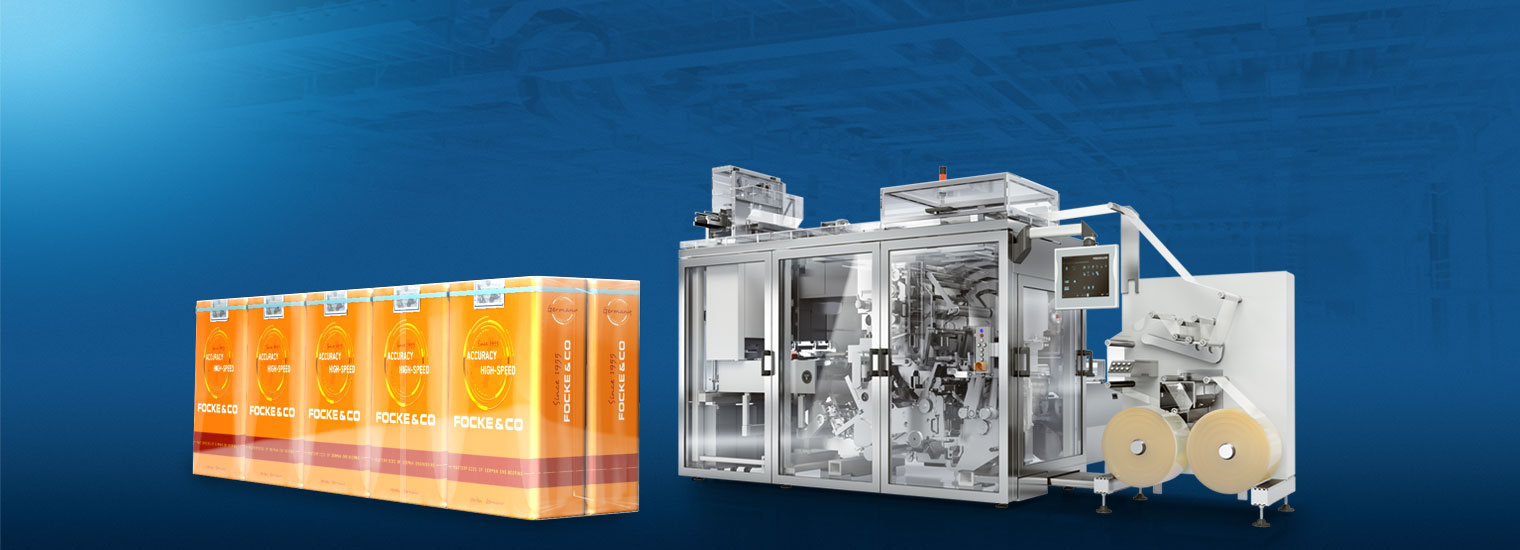

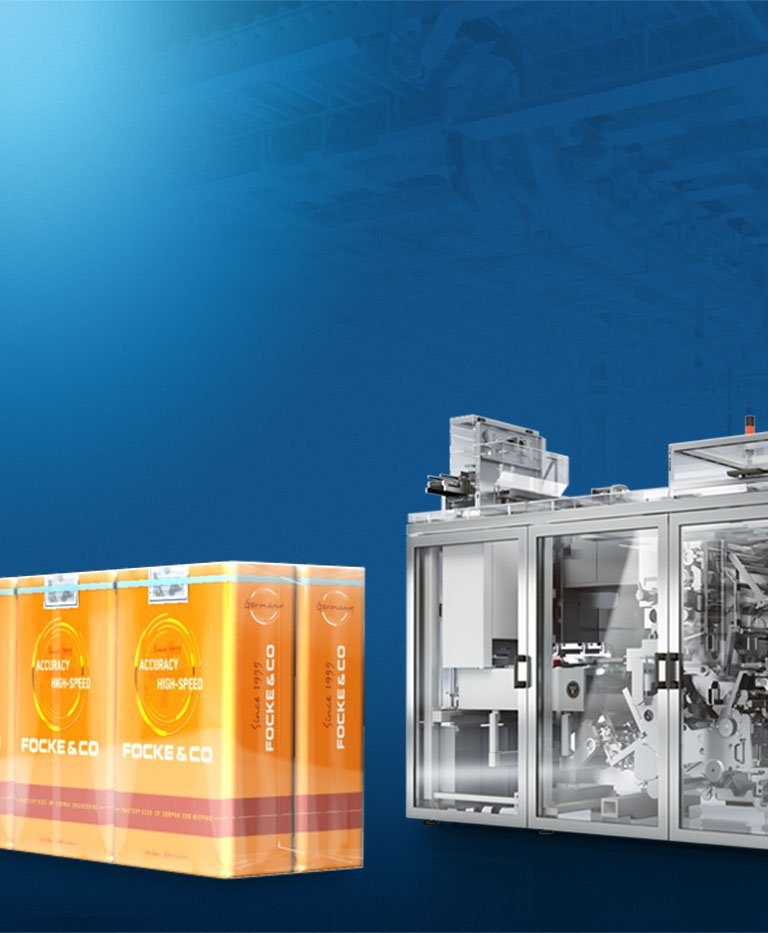

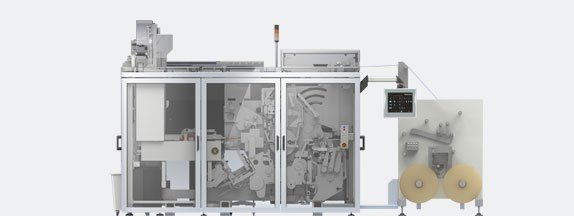

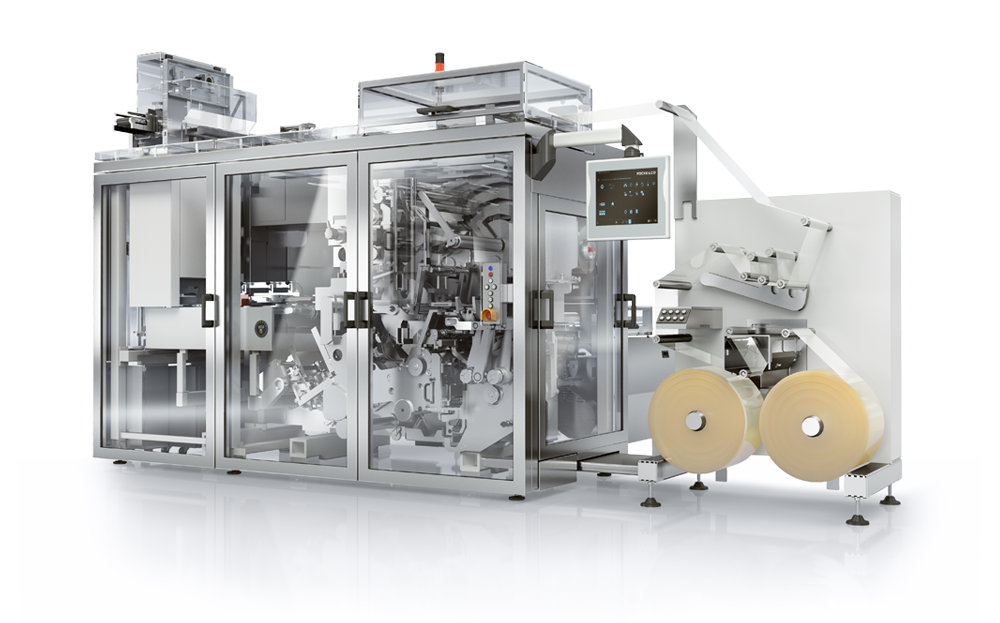

700 PPM | CARTONER/OVERWRAPPER FX-SOFT

Well-matched and highly flexible

Outstanding features

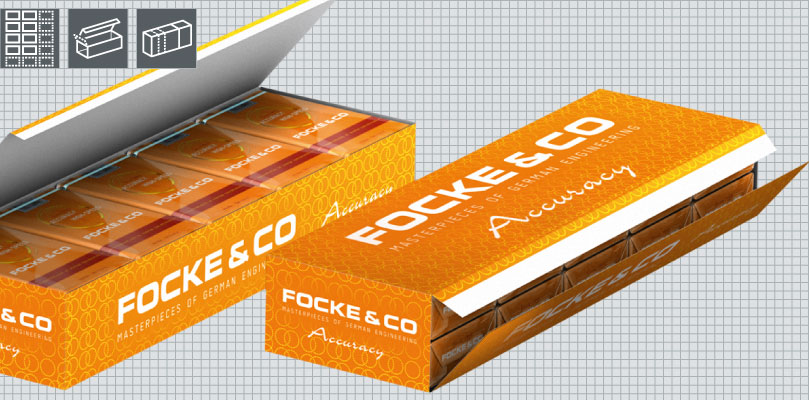

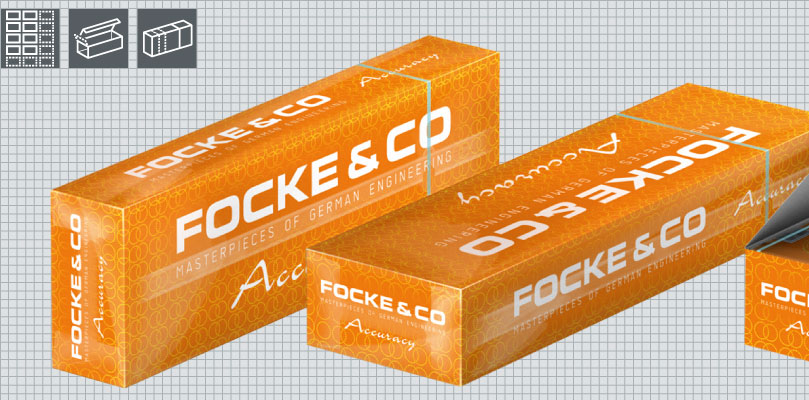

CARTON VARIATIONS
TYPE OF PRODUCTS
  • Box
  • Box overwrap
  • Paper parcel
  • Clear wrap
CARTON VARIATIONS
FLAPS AND OPENING
  • European carton
  • American carton
  • Modified American carton
TYPE OF PRODUCTS
  • Box
  • Box overwrap
  • Paper parcel
  • Clear wrap

Further Soft Cup Complexes

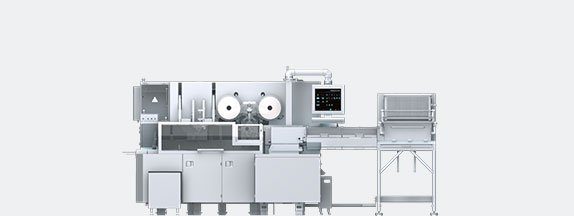

400 PPM | F3

B1
SOFT CUP PACKER

Link up to
filter cigarette maker for max.
8.000 cpm

400 packs per minute

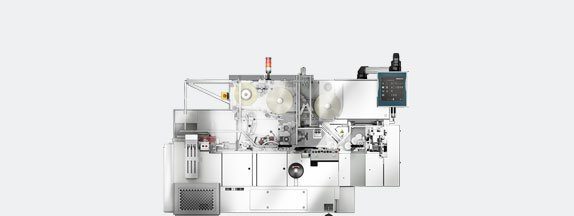

401
PACK WRAPPER

400 packs per minute

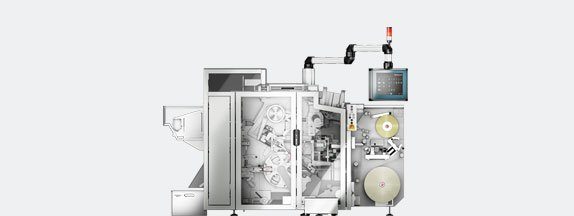

409
CARTONER/OVERWRAPPER

40 cartons per minute

500 PPM | F5

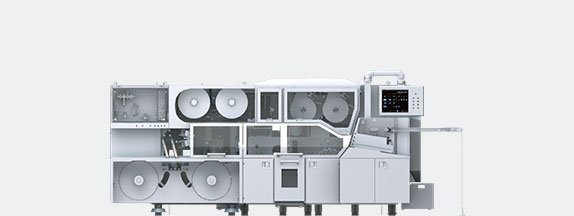

b0
SOFT CUP PACKER

Link up to
filter cigarette maker for max.
10.000 cpm

500 packs per minute

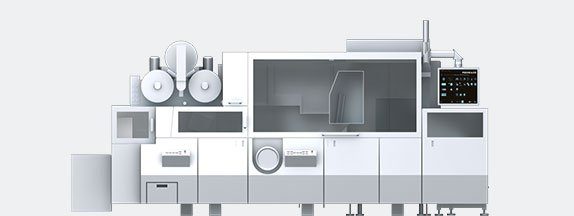

751
PACK WRAPPER

500 packs per minute

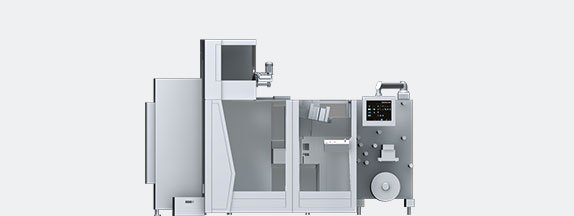

411
CARTONER/OVERWRAPPER

50 cartons per minute

700 PPM | FX-SOFT

725
SOFT CUP PACKER

Link up to
filter cigarette maker for max.
14.000 cpm

700 packs per minute

753
PACK WRAPPER

700 packs per minute

779
CARTONER/OVERWRAPPER

70 cartons per minute

800 PPM | F8

725
SOFT CUP PACKER

Link up to
filter cigarette maker for max.
16.000 cpm

800 packs per minute

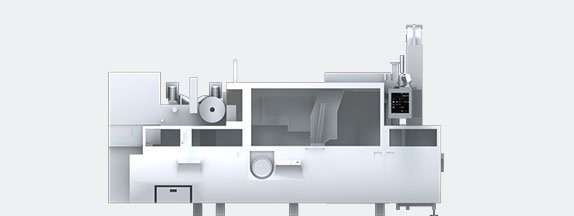

752
PACK WRAPPER

800 packs per minute

779
CARTONER/OVERWRAPPER

80 cartons per minute
