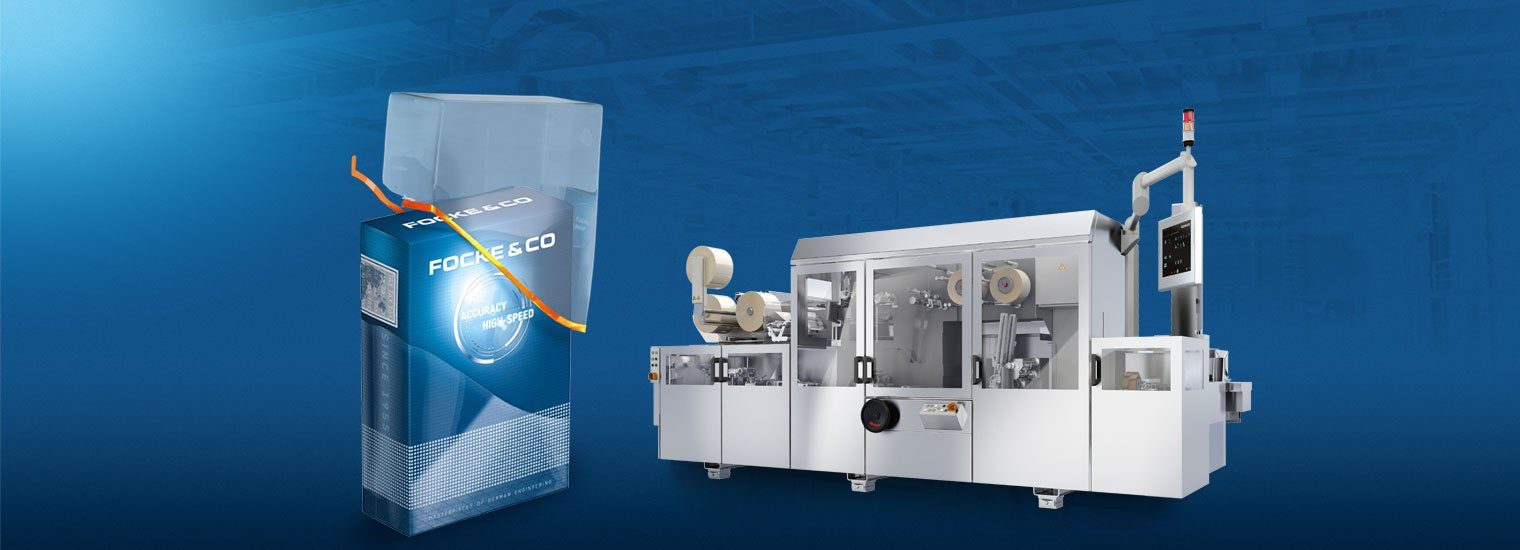

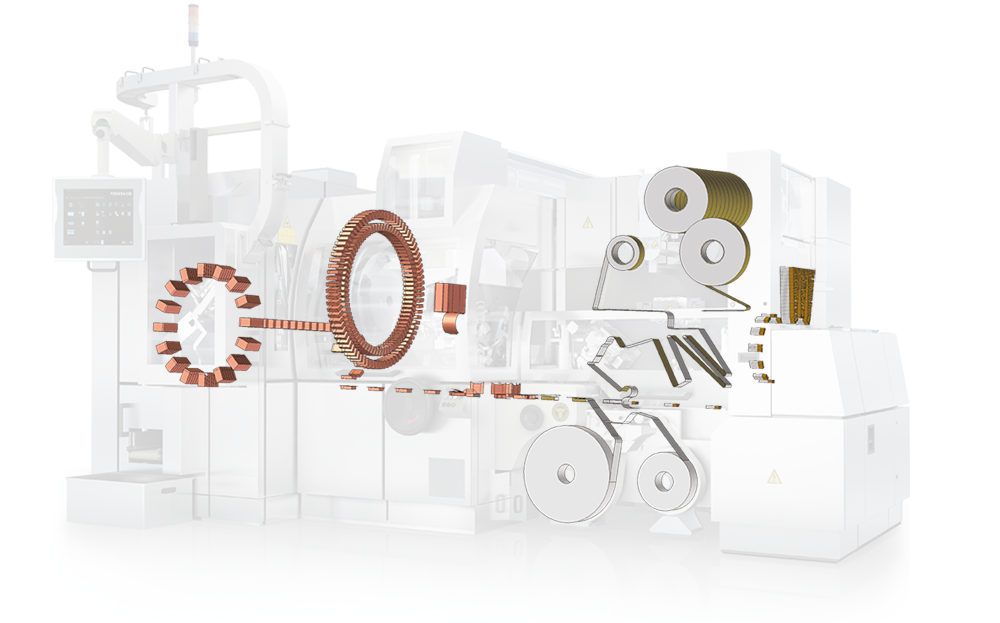

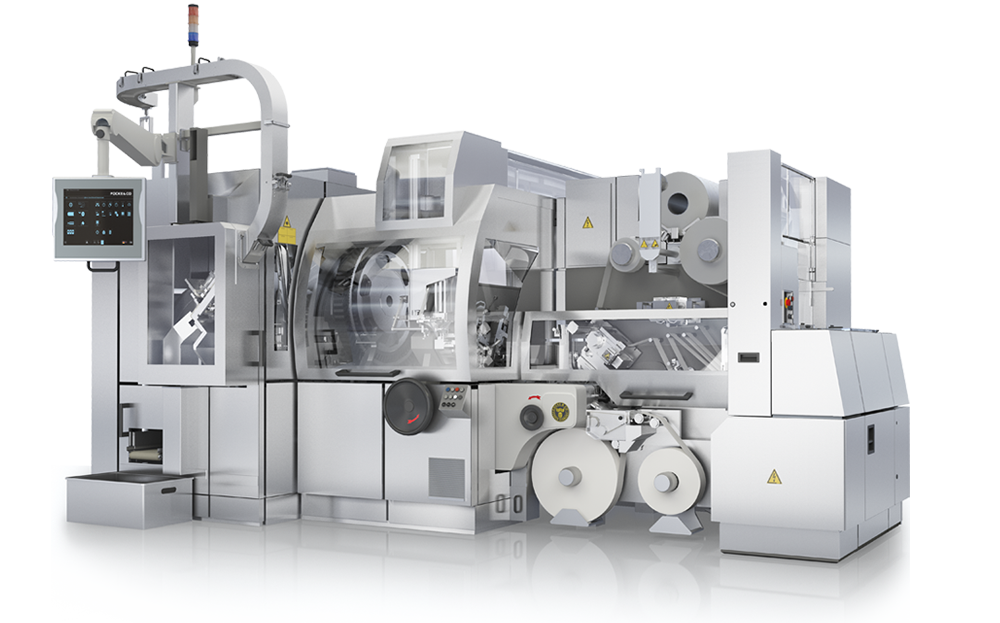

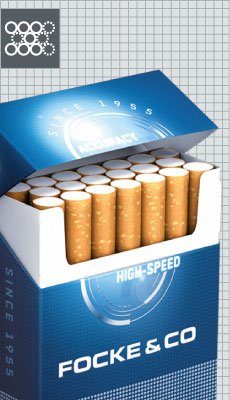

600 PPM | HINGE LID PACKER FX-1

Well-matched and highly flexible

Facts

Link up to filter cigarette maker for max. cpm

Packs per minute

HIGH

Efficiency

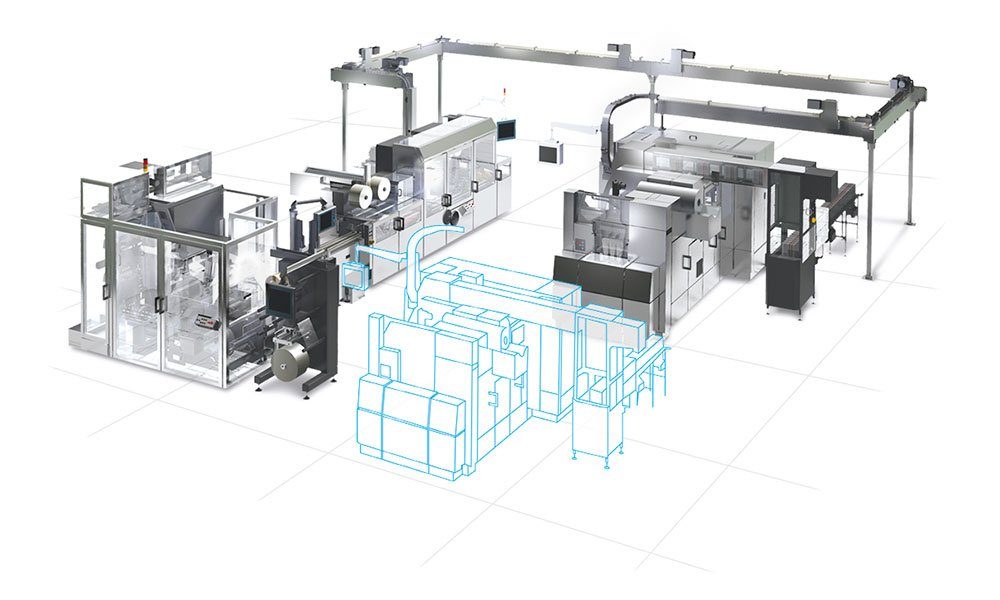

Layout Flexibility

The hinge lid packer can be positioned flexibly in relation to the pack wrapper and cartoner/ overwrapper. A tailor-made overhead conveyor provides improved accessibility also for linking the packer with any downstream equipment.

Outstanding Features

Format
  • Square Box
  • Round Corner
  • Half Round Corner
  • Octagonal
  • Half Octagonal
  • Customers specific
    requirements
    on demand

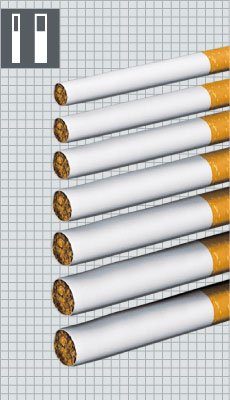

CIGARETTE DIAMETER
Diameter

5.4 - 8.2 mm

  • King Size
  • Demi Slim
  • Slim
  • Super Slim

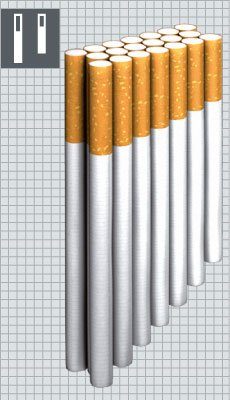

CIGARETTE LENGTHS
Lengths

72 – 102 mm

CIGARETTES / PACK
5710111214
151617181920
212223242526
2728293031

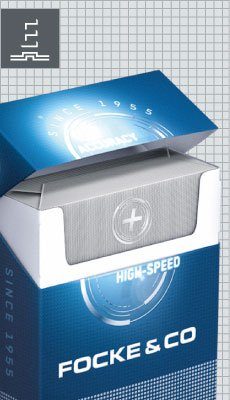

INNER LINER
Embossing Solutions
  • Standard embossing
  • Shadow embossing
  • Waffle embossing

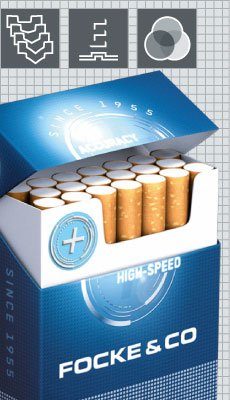

INNER FRAME
GRAMMAGE

220 – 240 g/sqm
Applicable for a wide
variety of materials and
colours

INSERT
GRAMMAGE

100 – 150 g/sqm

LENGTH

55 – 95 mm

WIDTH

30 – 50 mm

Up to 3 layers

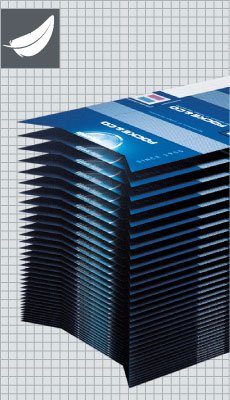

BLANK
GRAMMAGE

135 – 270 g/sqm

THICKNESS

200 – 380 μm
Stiffness in accordance
to DIN 53121

CODING
  • Inkjet
  • Laser
  • Embossing
  • Bottom print
  • Side print

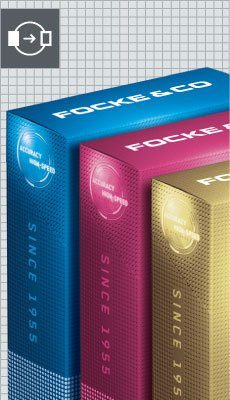

BRAND CHANGE

The emptying function
permit a brand change
in less than 30 minutes.

AUTOMATED MATERIAL HANDLING SYSTEM

The Automated Material Handling System was especially developed for the FOCKE & CO FX-Series. It not only provides fully automatic feeding of the inner frame and inner liner, it can also be used to supply the film for the wrapper or the film or paper for the cartoner/ ­overwrapper. Despite its high throughput rate, the work load of the operators is reduced to a minimum.

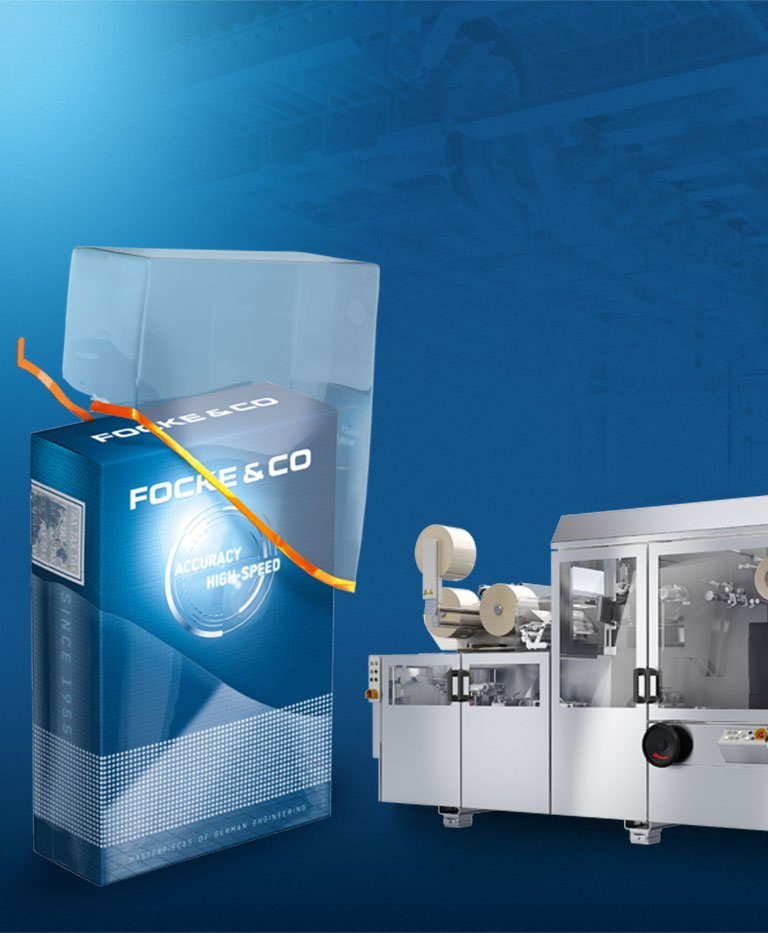

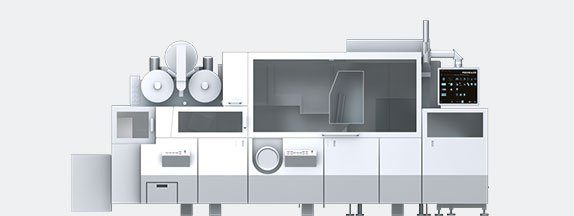

600 PPM | PACK WRAPPER FX-1

Well-matched and highly flexible

Outstanding features

TAX STAMP
Min Size

18.0 x 40.0 mm

MAX. SIZE

27.5 x 50.0 mm

Application
  • Lateral
  • Around top
  • Edge bending

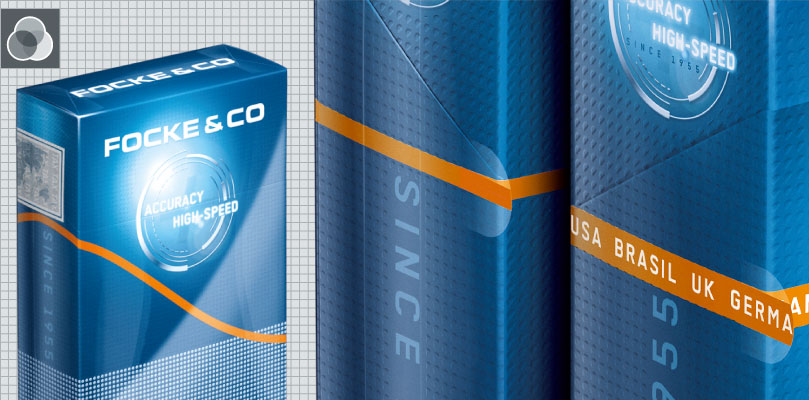

TEAR TAPE
WIDTH

1.5 – 4.0 mm

TYPES
  • Self-adhesive
PULL TAB POSITION
  • Horizontal, front side left
  • Horizontal, back side right
  • S-shaped, front side left

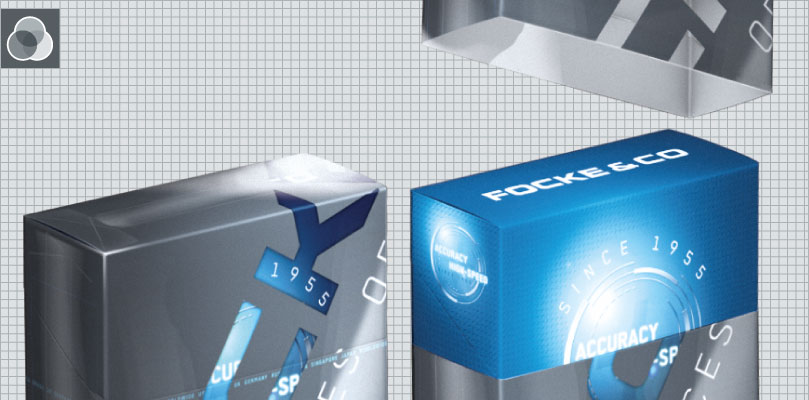

PRINTED FILM
THICKNESS

16 – 22 µm printed film

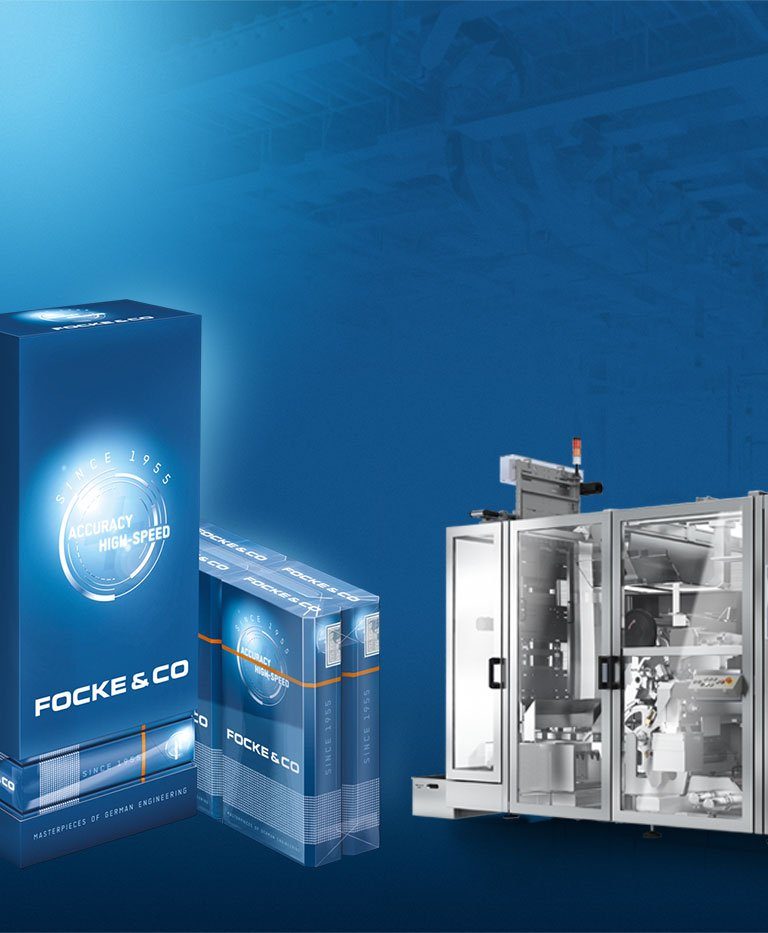

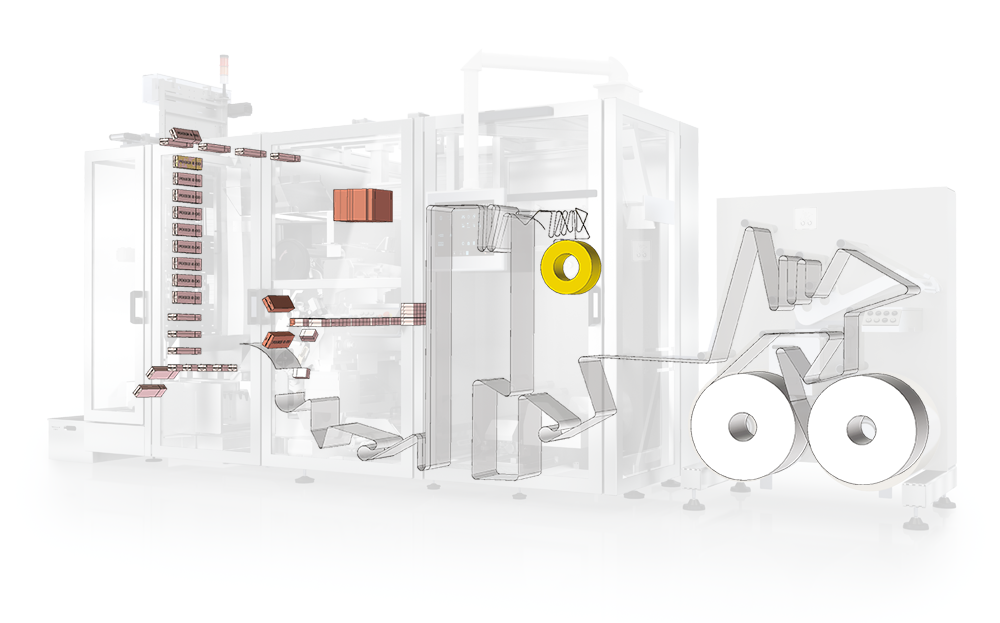

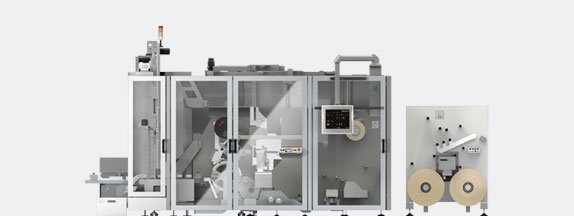

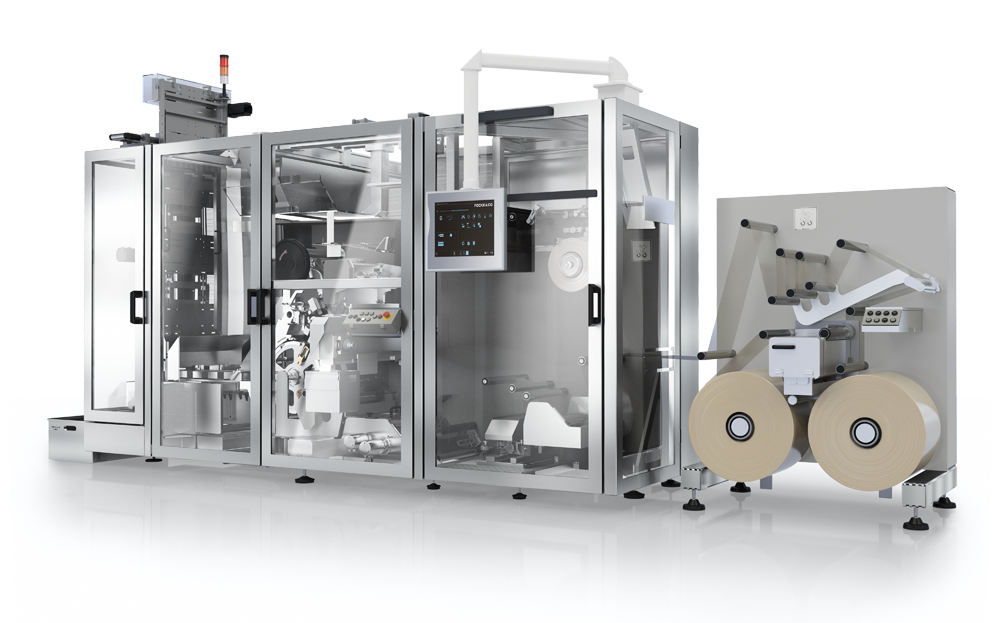

600 PPM | CARTONER / OVERWRAPPER FX-1

Well-matched and highly flexible

Outstanding features

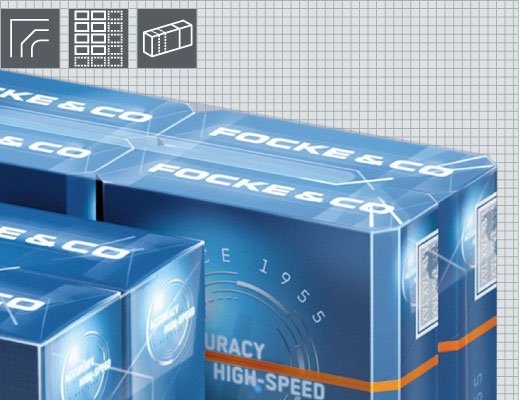

CLEAR WRAP
FACE AND FOLDING
  • Envelope folding
CARTON VARIATIONS
FLAPS AND OPENING
  • European carton
  • American carton
  • Modified American carton
TYPE OF PRODUCTS
  • Box
  • Box overwrap
  • Paper parcel
  • Clear wrap
CARTON WITH PRINTED FILM
THICKNESS

20 – 25 µm printed film

Further Hinge Lid Complexes

300 PPM | F3

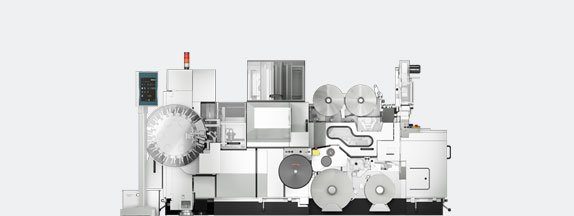

350
HINGE LID PACKER

Link up to filter
cigarette maker for max.
8.000 cpm

300-400 Packs per minute

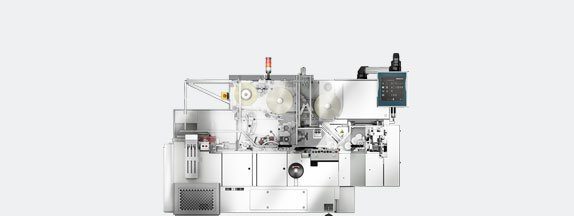

401
PACK WRAPPER

300-400 Packs per minute

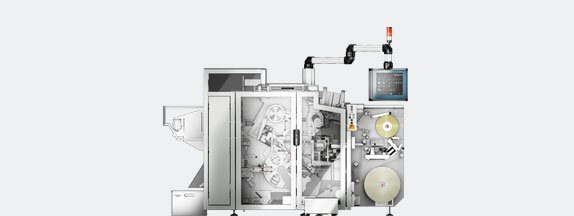

409
CARTONER / OVERWRAPPER

30-40 cartons per minute

400 PPM | F4

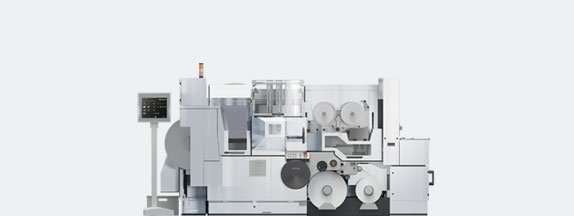

353
Hinge Lid Packer

Link up to filter
cigarette maker for max.
8.000 cpm

400 Packs per Minute

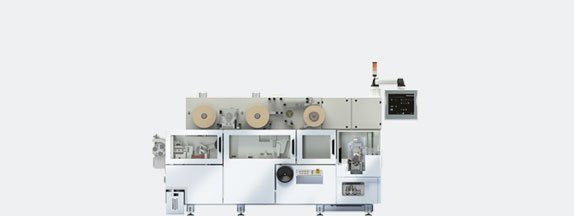

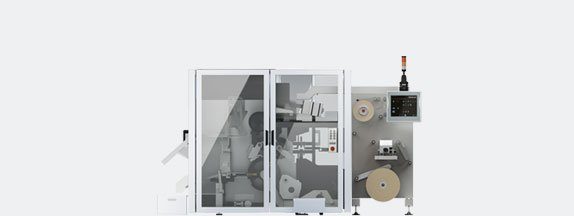

404
Pack Wrapper

400 Packs per minute

418
CARTONER / OVERWRAPPER

40 cartons per minute

500 PPM | F5

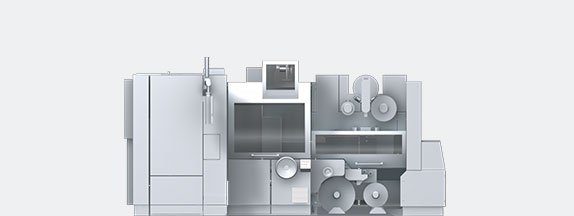

550
HINGE LID PACKER

Link up to filter
cigarette maker for max.
10.000 cpm

500 packs per minute

751
PACK WRAPPER

500 Packs per minute

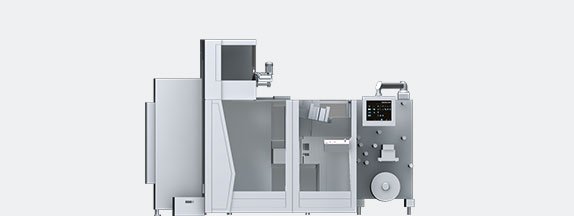

411
CARTONER / OVERWRAPPER

50 cartons per minute

500 PPM | F5 DOUBLE BUNDLE

552
HINGE LID PACKER

Link up to
filter cigarette maker for max.
10.000 cpm

500 packs per minute

751
PACK WRAPPER

500 packs per minute

411
CARTONER / OVERWRAPPER

50 cartons per minute

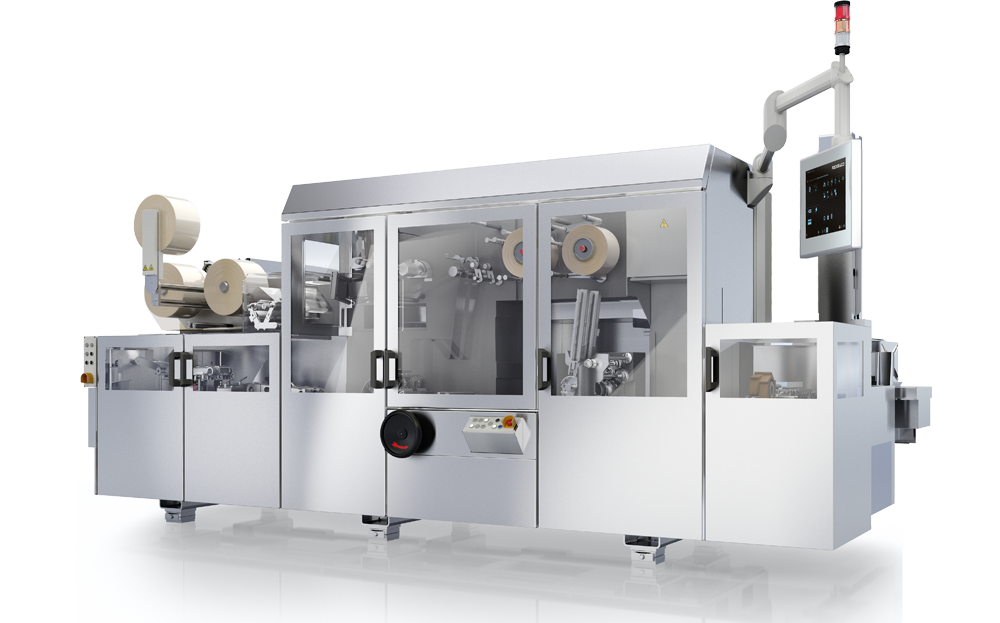

600 PPM | FX-1

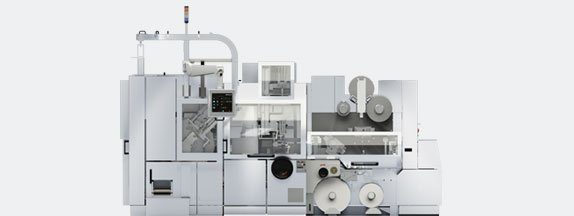

553
Hinge Lid Packer

Link up to
filter cigarette maker for max.
12.000 cpm

600 packs per minute

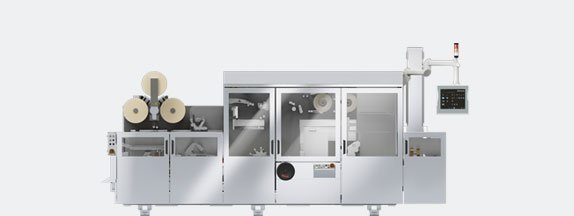

753
PACK WRAPPER

600 packs per minute

413
CARTONER / OVERWRAPPER

60 cartons per minute

700 PPM | FX-2

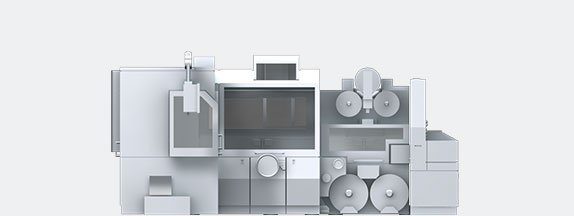

703
Hinge Lid Packer

Link up to
filter cigarette maker for max.
14.000 cpm

700 packs per minute

753
Pack Wrapper

700 packs per minute

779
CARTONER / OVERWRAPPER

70 cartons per minute

1.000 PPM | F8

701
Hinge Lid Packer

Link up to
filter cigarette maker for max.
20.000 cpm

1.000 packs per minute

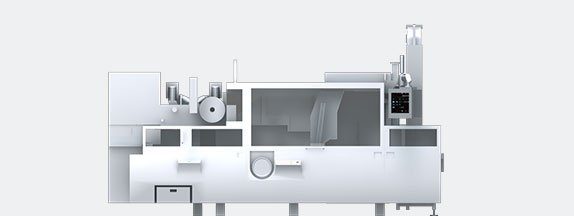

752
PACK WRAPPER

1.000 packs per minute

779
CARTONER / OVERWRAPPER

100 cartons per minute
